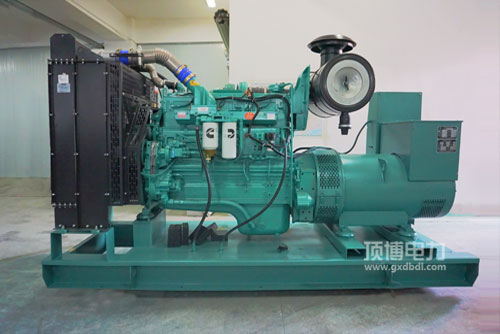

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯并网发电用打着机气油经济社会性好: 现代化的气油有效管理体统，独具特色的STC、ESTC 划分有效管理体统，异常设置的活塞式上边燃燒室，髙压喷洒气油，全面吸雾，燃燒全面。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电厂用发起机瞬态特点良好: 很好的的发起机整体布局的设计，配合默契康明斯独有的EFC设备，把握gps精性好，为了响应時间快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯风能发电用发起机升电率高: 整体上设计的密集.造型摆设合理的，工作市场平稳。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷网络制式 QSNT. QSK19. QSK38. QSK50符合中国人非市政道路3、时期及中美洲Tier2. Tier 3排放口法律规定规定。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备品备件可求性好， 打着机正常运作及维持养护方便快捷，利润低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

电机功率超范围 Power Range   224-310KW结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L形状的尺寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净重量 Dry Weight   940kg

224-310KW康明斯电站用启思想的优点：容积小， 文件压缩变高， 格珊气流调温，方便于启动服务器，移動车截电压的省心。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

热车机材质	通用输出(kW)Prime Power	预留输出kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
